Details

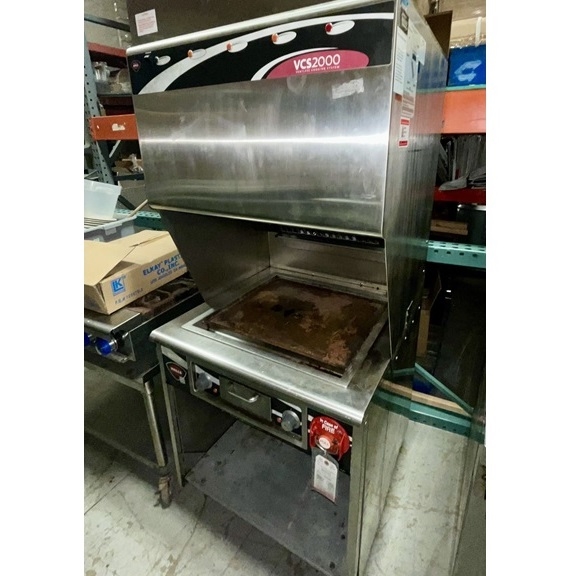

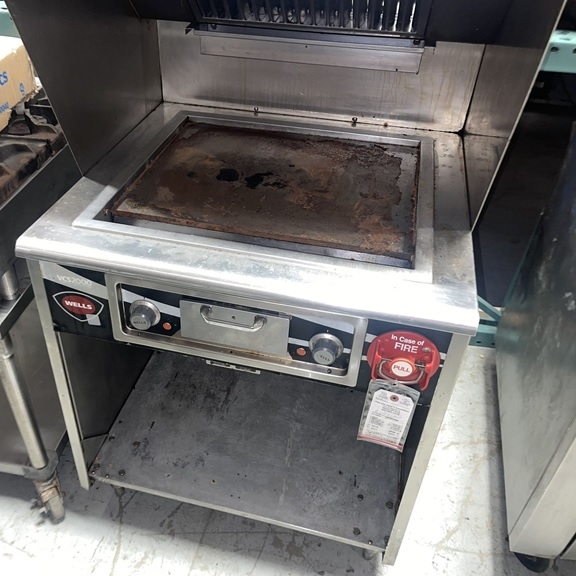

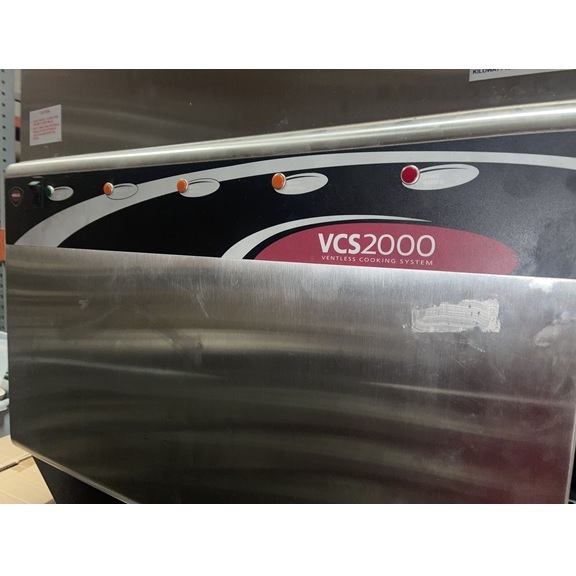

Electric griddle, with VCS2000 ventless hood system, 22" x 18" grill Area, thermostatic controls, self-contained hood system
Stainless steel construction, cabinet base with doors, front legs, rear casters
Airflow sending system continually monitors airflow through the filtration system, optimizing performance and grease removal.
Built in filter monitoring system indicates when filter replacement will soon be necessary.

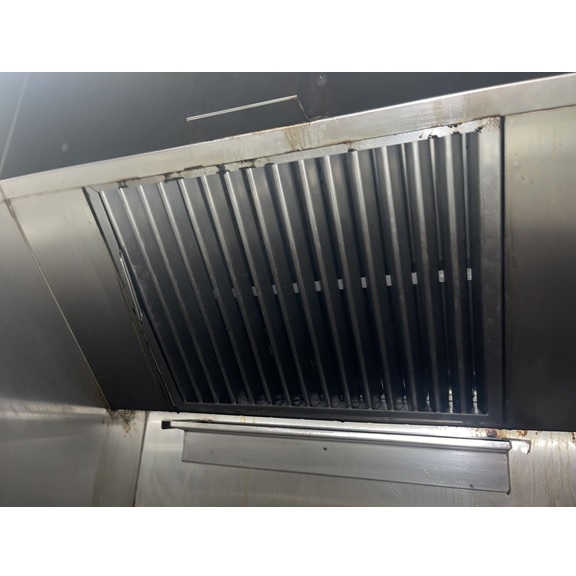

Features include a grease trough, an extra large removable front grease drawer, and a removable stainless steel splashguard.
Ventless hood system exceeds EPA standard 202 for the release of particular matter.

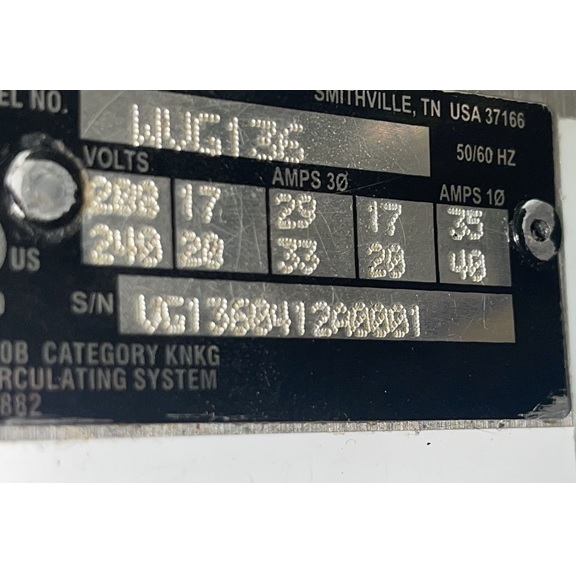

208/240 volt 3 Phase, UL, cULus, NSF.
Overall dimensions: 42 3/8"W x 35 3/8"D x 77 3/16"H (inc. 6" legs)
Interlock system will not allow griddle heating elements to be energized if the baffle, pre-filter or high efficiency filter is not in place
Ansul R-102 Fire Suppression System is built into the ventless hood to provide ultimate protection
Each individual positive off thermostat controls one half of the cooking surface.

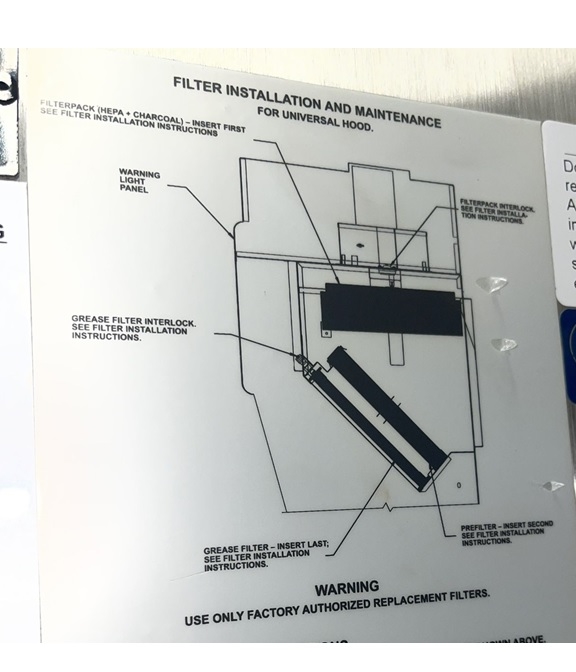

For replacement filters, this model requires (1) Pre-filter #22618, and (1) HEPA Charcoal Filter Pack #22619.
Spec Sheet
|
|
|
|
|
|
|
